Power Combo 60"-61" - 70E - Dualsky - 6S

Power Combo 60"-61" - 70E - Dualsky - 6S

numéro d'article: SW-FORCE-70-DUA-6S

catégorie: Kits d'entraînement

Pas disponible

599,00 €

Incl. 19% T.V.A. , plus

Sélection de la zone fiscale / du pays de livraison

Fabricant: Skywing RC

Dualsky GA1500.R / 545Kv / Skywing Hobbywing Platinum 100A V3 ESC/ 4 x SW988 Servo / 2x 1" Servo arm + 2x 1,25" Servo arm / 1 x 16x8 EOLO propeller / 1 x 16x7 Skywing wood propeller

Description
Avertir lorsque disponible

60"-61" Combo - Dualsky 6S

This Power Combo package was specially developed for 60"-61" models. This combination saves you an enormous amount of time when assembling the components. The motor and the controller are plugged together according to your colour code. Only the throttle path has to be taught in later.

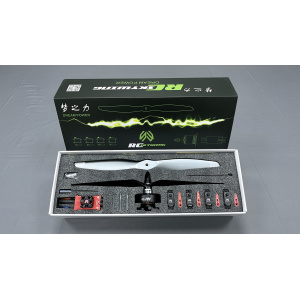

Contents: Dualsky GA 1500.R 545Kv motor + Skywing Hobbywing Platinum 100A V3 ESC + 4x SW988 servos + 2x 1" servo arms + 2x 1.25" servo arms + 1x 16x8 EOLO Propeller + 16x7" Skywing wood propeller + mounting hardware

2x 1" Servo arm for aileron

2x 1,25" Servo arm for elevator and rudder

Technical characteristics

Motor

KV	: 545
Weight	: 270g
Dimensionens(D x L)	: 69mm x 57mm
Length	: 89mm
Diameter of Shaft(mm)	: 8mm (Intern), 8mm (Propeller)
Spec. of Mounting Holes	: 55mm bis 60mm (4,1mm)
Slots & Pole	: 24,28
Io@10V	: 2,5A
Ri	: 13,5 mOhm
No.of Cells(LiPo)	: 22.2V ; 6S LiPo
Peak Power(180S)	: 1680 W
Recommend ESC	: Hobbywing Platinum 100A V3
Recommend Propeller	: 16x7
Weight of Sports ariplane	: up to 7.0 kg
Weight of 3D airplane	: up to 3.3 kg

ESC

Manufacturer / Importer	: Hobbywing
Number of cells LiPo	: 2-6S
Continuous current max.	: 100A
Peak current max.	: 150A
BEC load capacity	: 10A / 25A short
BEC output voltage	: 6V / 7,4V / 8,4V
Optocoupler	: no
Brake	: yes
Helimode (speed Control)	: yes
Programmable	: yes
Dimensions ca.	: 70 x 35 x 21 mm
Weight	: 104g

Servo

Servocategorie	: Mini
Weight	: 42gr
Dimensionens (L x B x W)	: 35,5 x 15 x 34mm
Actuation force at 6V	: 12kg/cm
Actuation force at 7,4V	: 14kg/cm - Recommended
Actuation force at 8,4V	: 15kg/cm
Speed at 6V	: 0,09 (sec/60°)
Speed at 7,4V	: 0,08 (sec/60°)
Speed at 8,4V	: 0,07 (sec/60°)
Motor	: Brushless
Digital	: yes
Output gearing	: 25T

caractéristique du produit	valeur
Poids d'expédition:	0,50 kg
Poids de l'article:	0,80 kg
