CLI Coreless HV Servo 9 Kg - 0.07 Sek/ 7.4V / 36 x 17 x 32mm - 46gr

Description
Notify me when this item is available

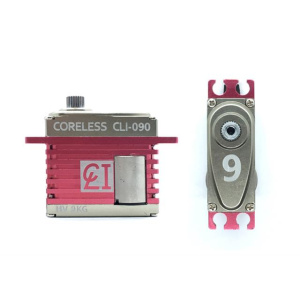

The CLI090 servo is a powerful performance servo in the 17 mm mini class. Its Japanese coreless motor achieves a speed of 0.07 Sec/60° at a voltage of 7.4 Volt and a torque of 9 kg/cm. (10,5 kg/cm - 0.06 Sec/60° under 8.4 Volt)

The CLI090 is ideally suited for helicopter and 3D aerobatic pilots. The state-of-the-art electronics guarantee low power consumption and extreme reset precision. The housing with deep cooling fins is made of a special heat-dissipating aluminium. Heat dissipation is at a very high level even in the most extreme situations. Special design measures in the manufacturing and lubrication of the gearbox enable smooth, quiet and cool running. The metal gearbox is specially designed for tough 3D flight (model aircraft and helicopters). It guarantees precision and durability.

CLI-Servos: uncompromising quality for the ambitious pilot who can make no compromises. 32-bit resolution guarantees smooth and precise Control.

TECHNICAL FEATURES - CLI090

Servo category	: Mini
Weight	: 46 Gr.
Dimensions	: 36 x 17 x 32 mm (LxWxD)
Dead Band Width	: 1 µs
Resolution	: 32 bit
Actuation force at 6.0 Volt	: 7 kg/cm
Actuating force at 7.4 Volt	: 9 kg/cm
Stellkraft bei 7.4 Volt Actuating force at 8.4 Volt	: 10,5 kg/cm
Speed at 6.0 Volt	: 0.09 sec/60°
Speed at 7.4 Volt	: 0.07 sec/60°
Speed at 8.4 Volt	: 0.06 sec/60°
Operation Voltage	: 6.0 to 8.4 Volt - Recommendation from manufacturer 7.4V
Servo arm	: metal - 1" (2.54 cm with central screw + side clamp) included
Metal gearbox	: high strengh metal (phosphor bronce + steel)
Ball bearing	: 2BB
Cable length	: 30 cm
Digital	: yes
Electric Motor	: Japan Coreless Motor
Case	: full aluminium - CNC milled
Country of Manufacture	: Taiwan
