CLI380

SKU: CLI380

Category: CLI -Servo

Available immediately

134,50 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Manufacturers: CLI Servo

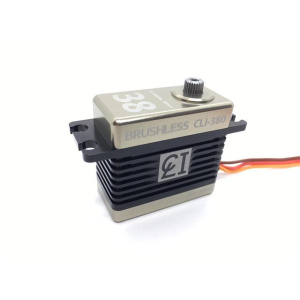

CLI Brushless HV Servo 38 Kg - 0.09 Sek/ 7.4V / 40 x 20 x 38mm - 69gr

Description

The CLI380 servo is an extremely powerful and fast high-performance servo in the 20 mm standard class. Its Japanese brushless motor achieves a speed of 0.09 Sec/60° at a voltage of 7.4 Volt with a torque of 38 kg/cm. (44 kg/cm - 0.08 Sec/60° under 8.4 Volt)

The CLI380 is ideally suited for helicopter and 3D competition pilots. The state-of-the-art electronics guarantee low power consumption and extreme reset precision. The housing with deep cooling fins is made of a special heat-dissipating aluminium. Heat dissipation is at a very high level even in the most extreme situations. Special design measures in the manufacturing and lubrication of the gearbox enable smooth, quiet and cool running. The metal gearbox is specially designed for tough 3D flight (model aircraft and helicopters). It guarantees precision and durability.

The gearbox is supported in the casing cap to ideally distribute the forces generated in flight to the gear wheels. This prevents a possible additional air gap in the gearbox.

CLI-Servos : uncompromising quality for the ambitious pilot who cannot make any compromises.

Specially developed for jets and 3D model Aircraft

TECHNICAL FEATURES - CLI380

Servo catogery	: Standard
Weight	: 69 Gr.
Dimensions	: 40 x 20 x 38 mm (LxWxD)
Dead band width	: 1 µs
Impulse frequency	: 900 - 2200 us
Resolution	: 32 bit
Actuating force at 7.4V	: 38 kg/cm
Actuating force at 8.4V	: 44 kg/cm
Speed at 7.4 Volt	: 0.09 sec/60°
Speed at 8.4 Volt	: 0.08 sec/60°
Operation Voltage	: 6.0 bis 9.0 Volt - Recommendation from manufacturer 7.4V
Servo arm	: metal - 1" (2.54 cm with central screw + side clamp) included
Metal gearbox	: full metal
Ball bearing	: 2BB
Cable length	: 30 cm
Digital	: yes
Motor	: Japan Brushless Motor
Case	: full aluminium - CNC milled
Country of Manufacture	: Taiwan

Item information	Value
Shipping weight:	0,40 kg
Item weight:	0,10 kg

Manufacturer according to GPSR
CLI Servo, https://www.cli-servo.com
Responsible person according to GPSR
Braeckman Modellbau, Krottstr. 27, 52146 Würselen, Nordrhein-Westfalen, Deutschland, info@braeckman-modellbau.de, https://www.braeckman-modellbau.de
