HV150S

SKU: CHASERVO HV150S

Category: CHA Servo

109,90 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Manufacturers: AKATJA GmbH

Available from: 21.12.2026 (Pre-orders possible)

Description

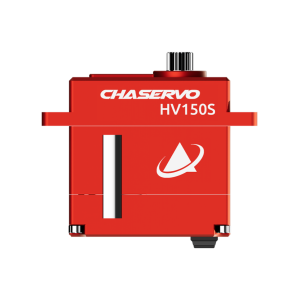

CHA Servo HV150S

The Chaservo HV150 – Series features a speed of 0.043sec/60° with a holding torque of up to 16.5 kg. Made for your 3D models for maximum performance!

Dimensions: 35.5 x 15 x 35.5 mm

Weight: 51 g

Rated Voltage: DC 7.4V

Voltage Range: DC 4.8 – 8.4V

Spline: 25T, 6 mm

Holding Torque @ 4.8V: 10.0 kg·cm

Holding Torque @ 6.0V: 12.5 kg·cm

Holding Torque @ 7.4V: 15 kg·cm

Holding Torque @ 8.4V: 16.5 kg·cm

Output Torque @ 4.8V: 6.0 kg·cm

Output Torque @ 6.0V: 7.5 kg·cm

Output Torque @ 7.4V: 9.0 kg·cm

Output Torque @ 8.4V: 10.0 kg·cm

No-load Speed @ 4.8V: 0.079sec/60°

No-load Speed @ 6.0V: 0.061sec/60°

No-load Speed @ 7.4V: 0.050sec/60°

No-load Speed @ 8.4V: 0.043sec/60°

Model: HV150S

Housing Material: Aluminium

Gear Material: Metal Gear

Position Sensor: Potentiometer

Motor: 4 Pole Brushless

Operating Frequency: 1520µs / 333Hz

Pulse Width: 900µs – 2100µs

Programmable: Yes

Scope of Delivery

Chaservo HV150S incl. wiring
Plastic servo horn
Mounting hardware

Item information	Value
Shipping weight:	0,10 kg
