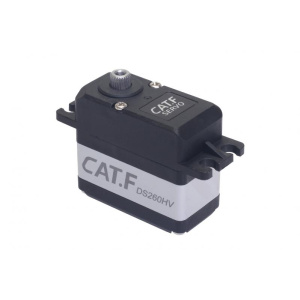

DS 260 HV - Alu/Plastic Housing

SKU: DS260HV

Category: Cat.F-Servo

Available immediately

45,00 €

incl. 19% VAT , plus

From	Unit price
4	42,75 €*
10	40,50 €*
20	38,25 €*

Choose tax zone / country of delivery

Manufacturers: Cat.F

DS 260 Coreless HV Servo 26kg/cm / 0.11 sec/60° / 7.4V / 40 x 20 x 36 mm - 64gr

Description

The specialized coreless motor crafted for the CAT.F(ast) series of servos is distinguished by its stable operation, high torque, exceptional efficiency, and prolonged lifespan, attributed to advanced manufacturing processes and premium materials.

Advantage

high-quality coreless motor for stable and low-noise operation
High-strength alloy gears, wear-resistant and anti gear crush
CNC-machined aluminum alloy casing for high precision, structural strength, and excellent heat dissipation effect
High-resolution, high-stability, and highly reliable digital control system
High-voltage (PCB)circuit board for wider range of applications
Features dual protection mechanism with stall prevention and soft start System

TECHNICAL FEATURES - DS260 HV - Aluminium/Plastic Housing

Servo category - Standard with soft start
Weight - 64gr.
Teeth - 25T
Dimensions - 40,0 x 20,0 x 36,0mm (L x W x D)
Resolution 32Bit
Positioning force at 6,0V - 22,0kg/cm
Positioning force at 7,4V - 26,0kg/cm
Positioning force at 8,4V - 28,0kg/cm
Speed at 6,0V - 0,13sec/60°
Speed at 7,4V - 0,11sec/60°
Speed at 8,4V - 0,10sec/60°
Operating voltage - 6,0V-8,4V
Gearbox - all metal
Ball bearing - 2 ball bearings
cable length - 20cm
Motor - Taiwan Coreless Motor
Housing - Aluminium/Plastic

Contents: Servo + 4 mounting screws + 1 centre screw

Item information	Value
Shipping weight:	0,40 kg
Item weight:	0,10 kg
