The Apex Aerotech 116" Laser is here to raise the bar in the 40% class! The Laser is a truly legendary platform, known for its championship-winning performances and airshow routines flown by the famous Leo Loudenslager in the full-scale aerobatic world. The Laser quickly became a historic platform due to its ability to perform innovative maneuvers, deliver a wide flight envelope, and present an unmistakable presence in the air. The 116" Laser perfectly embodies that legacy!
The 116" Laser is designed for 150–200cc+ engines and is easily compatible with both two-cylinder and four-cylinder engines in that range, with no modifications necessary. Apex Aerotech has performed extensive design work and testing with a single goal in mind: to close the gap between 120cc and 40% aircraft agility while maintaining all of the unique and acclaimed characteristics that 40% aircraft have long been known for. The Laser checks every box, including high-level IMAC capability, low-and-slow classic 40% 3D performance, and impressive high-energy XA tendencies that were previously only known from smaller aircraft. The combination of a commanding presence and agility that feels like a smaller aircraft is truly eye-catching!

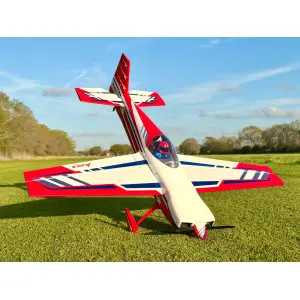

The Laser is available in two perfectly fitting color schemes: the "Retro" and "Velocity" liveries designed by Clint Sweet. Both schemes complement the aircraft's iconic lines beautifully, with the Retro livery paying tribute to the classic Laser appearance while adding a modern twist, and the Velocity livery delivering a bold, attention-grabbing, high-performance look.
The 116" Laser also includes a variety of features that make the assembly of a 40% aircraft simple, straightforward, and convenient. Without a doubt, the 116" Laser truly raises the bar in the 40% class, from its versatile flight performance to its unmatched convenience!
Features:
- Quick release mechanisms for wings, stabs, and canopy
-
Pre-installed and painted control horns
-
Pre-installed cockpit and pilot figure
-
Cowl cutting template
-
Pre-installed and labeled extensions
-
Pre-installed servo lead connectors for ailerons and elevators
-
17oz/500ml Apex fuel tank included
-
Included livery matching carbon fiber spinner
-
Includes three 5mm (15mm total) spacers for easy spinner gap alignment with Apex/Dualsky mounts, for both gas and electric!
-
Electric motor baffles included
-
Quick release/attach side force generators
-
Removable rudder
-
Painted landing gear
-
Aluminum canopy pin receptacles
-
Wing bags, stab bags and canopy cover
-
Removable hatches for fuselage access
-
Carbon fiber/Kevlar-laminated structure throughout
-
High quality decal package
-
Blind nuts installed in wingtips for night lights
-
Pre-cut cowling pressure lip opening for hot-air exit
Specifications
Wingspan: 2946mm / 116"
Length: 2921mm / 115" (with Spinner & Rudder)
Length: 2591mm / 102" (with Spinner & without Rudder)
Length: 2387mm / 94" (without Spinner & without Rudder)
Weight: ap. 17,23 - 8,15kg / 38-40lbs
Covering(manufactured by FLFRC)
Red/Blue "Retro"
009-1 Dark Red
011-1 Dark Blue
016-1 Silver
014-1 White
Recommended Equipment
Engine: 150 - 240cc + Canisters
2-cylinder engine mount included, Apex/Dualsky 200cc Engine mount
recommended for 4-cylinder (25mm 4-cylinder standoff)
Propeller: 30-34"
Servo:
Servo Arm Setup:
-
Qty.1 - 1,25" Servoarms Aluminium (Throttle)
-
Qty.4-6 - 1,5" Servoarms Aluminium (Aileron)
-
Qty.2-4 - 2,00" Servoarms Aluminium (Elevator)
-
Qty.2 - 2,00" Servoarms Aluminium (Rudder)
min. 12/20-Chanal-Receiver, power supply, Batteries (2x 2S 3000-4000mAh)
Control Surface setup
| Surface |
High Rates |
Low Rates |
| Aileron |
38° up / 37° down / 50-55% Expo |
20° |
| Elevator |
55-60° / 50-55% Expo |
15° |
| Rudder |
max without binding / 45-55% Expo |
20° |
Shipping size
Package 1: 214cm x 55cm x 42cm / 16,5kg
Package 2: 132cm x 70cm x 18cm / 8,0kg
Package 3 : 46cm x 42cm x 42cm / 3,1kg
Warning: Not suitable for children under 36 months due to small parts that could be swallowed, posing a choking Hazard.
Warning: Not suitable for children under 14 years of age. Use under adult supervision.
